Scope of application and intended use

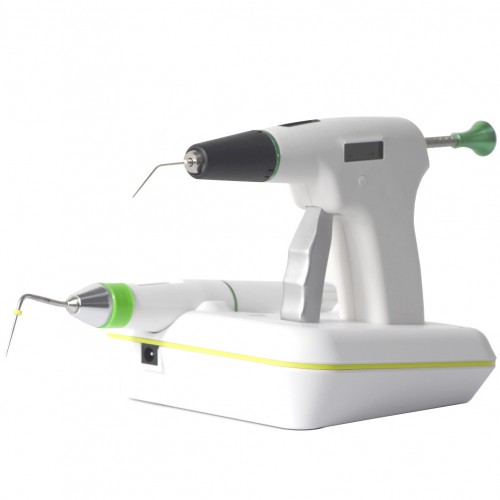

This product is suitable for dental necrosis of the root canal, chronic pulpitis (including periapical granuloma, periapical abscess, periapical cyst), periodontal disease of the pulp and systemic diseases should not be extracted. Those who need treatment or temporary retention of the teeth can use the hot melt dental filling system, which can closely fill the root canal in the tooth, which not only changes the original filling method, but also makes up for the original filling defect.
a)2-in-1 system makes filling more easier and convenient
b)Adopt 0.5 megapixel OLED LCD display
c)Temperature adjustment digital display, temperature adjustment is more convenient;
d)Small body and more ergonomic
e)Rapid heating for improved operating efficiency
f)Digital display of battery power
g)Work status display
h)There is a buzzer sound during operation
Charging system
1. Operating Voltage DC. 3.7V
2. Adaptor Input: AC 100-240V Output: DC (5V-12V 2A)
3. Charging time 5 hours
4. Continuous heat-up time for gun after fully charging 60 minutes
5. Continuous heat-up time for pen after fully charging 30minutes
Obturation Gun
1. Heater DC3.7V 8W
2. Temperature sensor Thermocouple
3. Heating time 30 seconds
4. Temperature range 100-220 C. degree
1. Temperature sensor IC type
2. Heating time 2 Seconds
3. Temperature range 100-300 C. degree
Battery (Lion)
1) Capacity: DC3.7 V 2200mah
2) Operating condition: Temperature 5-40
Fever needle
| Heating needle model |
Taper |
Diameter |
| F |
02 |
#35 |
| FM |
04 |
#40 |
| M |
06 |
#50 |
| ML |
08 |
#55 |
