Specification:
Power: RD50(180W) RD80(220W)
Air Flow Rate:RD50(310 m3/h) RD80(340 m3/h)
Filters layer:RD50(3 layer + 1Pc UVC Lamp) RD80(4 layer + 2Pcs UVC Lamps)
Size:RD50(400x255x545mm) RD80(400x255x595mm)
CB:RD50(0.157) RD80(0.166)
N.W:RD50(21kg) RD80(24kg)
Volumetric Weight:RD50(31.5kg) RD80(33kg)

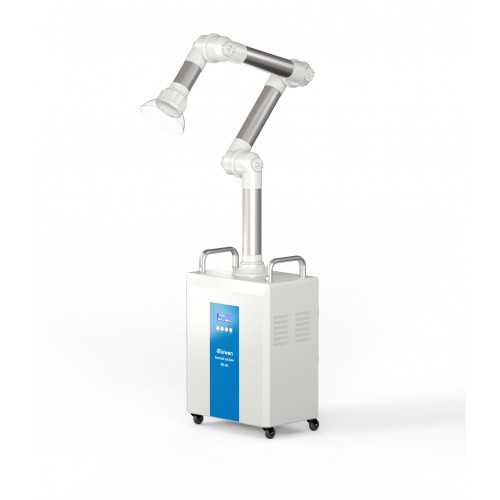

Off mouth aerosol suction extractor RD80
Oral therapy is prone to aerosol propagation because of its treatment space and the particularity of the equipment. First, dental treatment with high-speed turbo cell phone, ultrasonic cleaning machine, ultrasonic bone knife, three-use gun and other water mist mixed with the patient's blood and saliva, easy to creat aerosols, pollution of the surrounding air and object surface; Secondly, it is easy to cause patients to cough or even vomit during oral treatment, which is also one of the risk factors for aerosols. Bacteria and viruses are known to be transmitted by aerosols.
In addition the virus may be through aerosol transmission into the same clinic to patients or health care workers while in oral treatment, resulting in cross-infection. Even because aerosols will be suspended in the air for a period of time, may remain on the surface of the dental chair and dental instruments, and are repeatedly inhaled by the patient or health care provider of subsequent visits, resulting in indirect cross-infection.
AITI Vrious
The situation of the epidemic has slowed down, oral clinics around the beginning of the resumption of re-work, but because of the special nature of oral treatment, dentists to patients in the course of treatment will produce a large number of droplets and aerosols, which will cause the spread of viruses and bacteria, seriously affecting the health of doctors and patients. This aerosol suction unit is developed for dental clinics - off mouth aerosol suction extractor RD50, effectively concentrated oral diagnosis and treatment process with bacteria aerosols, through the original high-efficiency filter layer can effectively absorb water vapor, equipping activated carbon and HEPA effective filter 99.99% droplets, aerosols, so that the air continues to fresh, clean, improve the cleanliness of the diagnosis and treatment environment, reduce cross-infection, to achieve the purpose of anti-infection.
Model:RD80
Noise:<52 db
Voltage:AC110V / 220V
Filtration Effect:0.3 μm 99.97%
Power:220W
Size:400x255x595mm
Air Flow Rate:340 m3 / h
Diameter of Flange:75 mm
N.W:24 kg
Filter Elements:4 layers+2 UV Lamps +Plasma
Certificate:CE , PONY, ISO
