Dental Lab Equipment Technical Specifications
1. DSP: High power Digital Image Monarch Processor.
2. Sensor: high-quality CMOS sensor, 2M pixel(hardware,no Interpolation)
3. Resolution: 640X480,1600 X 1200 (set resolution: menu---options--video capture pin... )
4. Interface: USB1.1/USB2.0.
5. Frame rate: 30 frames/sec (When resolution at 640 X 480),1600 X 1200 5frames /sec
6. Focal distance: 5mm - 30mm (when Focal distance infinity,the microscope as a webcam,can not magnify).
7. Magnification: Please refer to the sample photos and video
8. Diameter: 12mm
9.USB cable Length:about 150cm
10.Lighting:8 X LED around the camera lens
Packaging included (Composite anti-static air bubble bag)

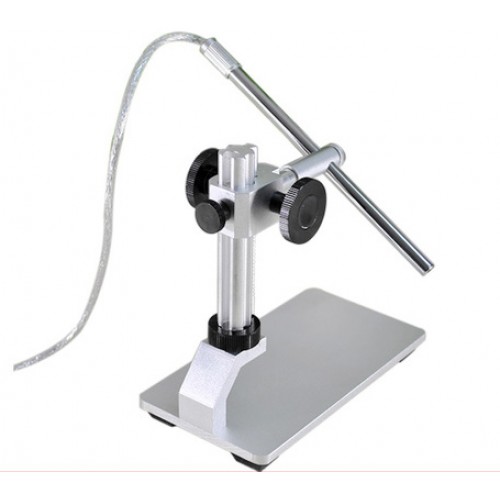

Digital Microscope Camera X 1
Software CD (User manual included) X 1
Metal base Stand X 1
